Home 1984 Chevrolet S10 Blazer Base 2.8L V6 - Gas Instrument Panel

Instrument Panel for 1984 Chevrolet S10 Blazer

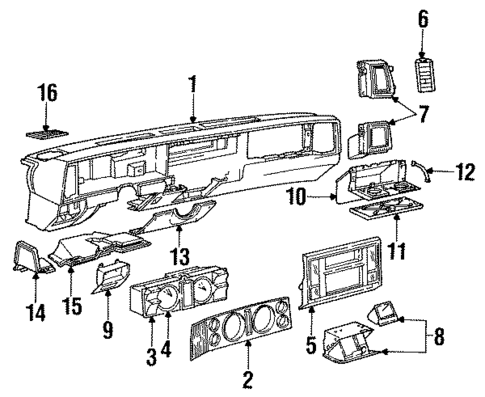

Instrument Panel for 1984 Chevrolet S10 Blazer #0

Instrument Panel for 1984 Chevrolet S10 Blazer #0

1

1

10

10

11

11

12

12

13

13

14

14

15

15

16

16

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

No.

Part # / Description / Price

Price

1

15599685 - Body: Instrument Panel for GM Image

Instrument Panel

GM

Description: 1982-85. 1983-85.

2

14042834 - Body: Cluster Panel for GM Image

Cluster Panel

GM

Description: 1983-85, with ac.

2

14042836 - Body: Cluster Panel for GM Image

Gauge Cluster Cover

GM

Description: 1982-85. 1983-85, without ac.

3

25051028 - Body: Gauge Housing for GM Image

Gauge Housing

GM

Description: 1983-85, without tachometer.

3

25046198 - Body: Gauge Housing for GM Image

Gauge Housing

GM

Description: 1983-85, with tachometer.

4

25053996 - Body: Lens for GM Image

Lens

GM

Description: 1982-85. 1983-85, with gauge package.

4

25053995 - Body: Lens for GM Image

Lens

GM

Description: 1983-85, without gauge package.

5

14059869 - Body: Radio Trim for GM Image

Trim Plate

GM

Description: 1982-85, center. 1983-85.

6

14028832 - Body: Vent Chamber for GM Image

Vent Chamber

GM

Description: 1983-85.

7

14059825 - Body: Trim for GM Image

Trim Plate

GM

Positions: Right

Description: 1982-85, right. 1983-85.

8

14028758 - Body: Ashtray Assembly for GM Image

Ashtray Assembly

GM

Description: 1983-85.

9

14028760 - Body: Trim Plate for GM Image

Trim Plate

GM

Description: 1983-85, with pulse wiper.

9

14028759 - Body: Trim Plate for GM Image

Trim Plate

GM

Description: 1983-85, without pulse wiper.

10

15588188 - Body: Glove Box for GM Image

Air Deflector

GM

Description: 1983-85.

11

14059821 - Body: Door for GM Image

Glove Box

GM

Description: 1982-85, door, standard. 1983-85, standard.

11

14059875 - Body: Door for GM Image

Glove Box

GM

Description: 1982-85, door, Tahoe & sport. 1983-85, with decor package.

12

14042826 - Body: Stop for GM Image

Glove Box

GM

Description: 1982-85, stop. 1983-85.

13

14028763 - Body: Column Cover for GM Image

Column Cover

GM

Notes: PARTS: Order by description.

Description: 1982-85, lower. 1983-85.

14

14059858 - Body: Sound Absorber for GM Image

Sound Absorber

GM

Positions: Right

Description: 1983-85, side, federal.

14

14059859 - Body: Sound Absorber for GM Image

Sound Absorber

GM

Positions: Right

Description: 1983-85, side, california.

14

14064969 - Body: Sound Absorber for GM Image

Sound Absorber

GM

Positions: Left

Description: 1983-85, side, california. 1983-85, side, federal.

15

14042889 - Body: Sound Absorber for GM Image

Sound Absorber

GM

Description: 1983-85, center.

16

14028755 - Body: Grille for GM Image

Speaker Grille

GM

Positions: Left

Notes: PARTS: Order by description.

Description: 1982-85. 1983-85.

16

14028756 - Body: Grille for GM Image

Speaker Grille

GM

Positions: Right

Notes: PARTS: Order by description.

Description: 1982-85. 1983-85.

Related Parts

Part # / Description / Price

Price

14059826 - Body: Inner Panel for GM Image

Inner Panel

GM

Description: 1983-85.

15173233 - Body: Speaker for GM Image

Front Radio Speaker ²

GM

Notes: PARTS: Order by description.

Description: Restores the sound quality of your audio system This GM Genuine Part is designed, engineered, and tested to rigorous standards and is backed by General Motors

15591221 - Body: Insert for GM Image

Insert

GM

Description: 1983-85.

16008040 - Body: Radio for GM Image

Radio

GM

Notes: PARTS: Order by description.

Description: 1983-85, am/fm cassette. 1982-84, am/fm stereo cass.

16207841 - Body: Radio for GM Image

Radio

GM

Notes: PARTS: Order by description.

Description: 1982-85, am/fm mono. 1983-85, am. 1988-90 standard, am/fm stereo. 1988-90 rs & z24, am/fm stereo. 1986-90, am/fm cassette. 1982-84, am/fm stereo. 1991-94, am/fm stereo.

² This part contains hazardous materials. Extra shipping costs apply.
